Multi-Function Wheel

[182_blue]

yeh, only cars i have seen it on are GT's and other lower models, but then again i havnt been in any older Gti's with MFSW, im sure someone will confirm it was standard on the older GTi's

[SteveP]

^^^ Yep, I have seen this style on an older (05 Plate I think) GTI my dealer had up for sale a few months ago.

[clive]

^^^ Ahh, I am normal then...  phew

[Saint Steve]

Yes , from 55 plate approx, the buttons on the wheel reversed sides. My 05 laser blue had buttons oposite to those fitted in my 07 edition 30 and my brief ownership of my steel grey GTi.
The window wiper stalk had a switch on the top (same as the cruise control on opposite side) which you used to access the Highline multifuntion menus, rather then being on the wheel currently fitted

[RedRobin]

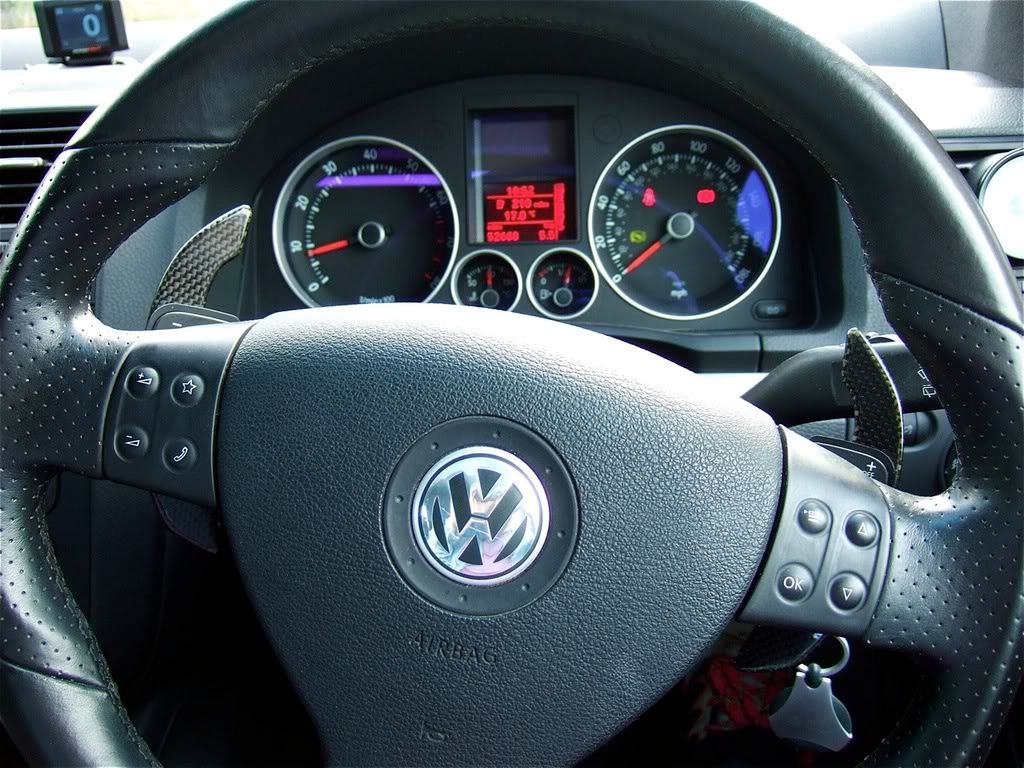

....Here's mine - A late 05 reg but 06-build (July 2005) : -

[Saint Steve]

interesting robin, my laser blue was May 05 and has this set up and mine had highline fitted whereas yours only has midline.  perhaps dates are closer then we think.That one has buttons in reverse to yours.If you look closely, you can see.Volume up/down on the right side instead of current left.

[RedRobin]

interesting robin, my laser blue was May 05 and has this set up and mine had highline fitted whereas yours only has midline.  perhaps dates are closer then we think.That one has buttons in reverse to yours.If you look closely, you can see.Volume up/down on the right side instead of current left.

....I chose MidLine instead of HighLine (don't ask!! - A mistake!).

If you look at mine again you'll see that my sound volume up/down is on the left. The up/down arrows on the right are scroll buttons.

[clive]

Although I have the highline I think the layout of the DSG display is more logical on the midline as it reflects the layout of the shifter itself.  On the highline it's displayed horizontally.

Oh, and my MFSW buttons are laid out with volume/phone controls on the left and MFD controls on the right.

[No Golf Clubs at all]

I have an (55), car registered in September 2005. though the vin shows it as an 06 model.  Volume buttons are on the left, MFD controls on the right.  The buttons are the same as Reds. So...when did the buttons change to this type? on the 06 Model? Purely out of geeky interest you understand....

clive, you state your car is a 06, does the vin code have a 5 or 6 in the 10th place?....I think its the 10th place, if my old memory serves me.  Or have we established that your mfsw was retrofitted? check inside your service booklet theres a load of codes in there, you should have one that states (1MS) this translates in vw code terms to "leather steering wheel with Tiptronic" and as far as I can ascertain this means if you have that code on your page then your car was factory built with MFSW.

Other codes, from mine as below. The 3 digit code appears, not the description ...I got that from some reference web site or other.

B0N = component parts set, complying with vehicle type for Great Britain, various parts
CQ4 = alloy wheels 6J x 16
G1A = six-speed automatic transmission
H7D = tires 225/40 R 18 92Y xl
J1D = battery 380 A (72 Ah)
D2L = 4-cylinder gasoline engine 2.0 L/147 kW 16V turbo FSI, homogeneous, base engine is T59/T61
1AT = electronic stabilization program (ESP)
1G9 = space-saving spare wheel for temporary use, radial tire (5-hole)
1MS = leather steering wheel with Tiptronic
1NL = covers for alloy wheels
5RV = outer right rear view mirror: non-spherical
5SJ = outer left rear view mirror: convex
T59 = components for, base engine, unit 06F.C
0BF = rear stabilizer
3U3 = luggage compartment cover with luggage net
QG1 = service interval prolongation
8AY = radio/navigation system
8GU = alternator 140A
8ZH = antenna for AM/FM reception, "diversity"
1KY = disc brakes, rear
1LL = disc brakes, front
3FE = electric slide/tilt sunroof with sun screen/sunblind
3YR = door pockets with insert mats
G08 = front shock absorption
0GG = emissions concept EU 4
0Y1 = standard climatic zones
4UF = drivers and front passenger airbag with front passenger airbag deactivation
4X3 = side airbag front with curtain airbag
4K3 = radio remote controlled central locking operated from inside and safe securing
N7F = partially leather seat covering, fine embossed
5MD = decorative aluminum inserts
8RW = 10 loudspeakers (passive)
2JG = body-colored bumpers
E0A = no special edition
0AE = front stabilizer
0BF = rear stabilizer
2UC = sports version
2G7 = filler neck module 1 with insert
1JE = rear sports shock absorption
L99 = code not found :-(
0YC = weight category rear axle weight range 3

[RedRobin]

....Dare I ask what those crumpled items are on either side of your floor stick and on the ashtray cover?
