help needed with ko3s pipe work from turbo asap

[darren1.8t]

right guys I fitted a new ko3s to my auq on sunday!! but were do I run the pipes correctly? on the tip there is a stump for a hose and im stuck witch way they go ? does any have a decent picture? I have 2 pipes from n75 then a pipe from actuator what goes were as I think I have done them wrong help would be great cheers guys

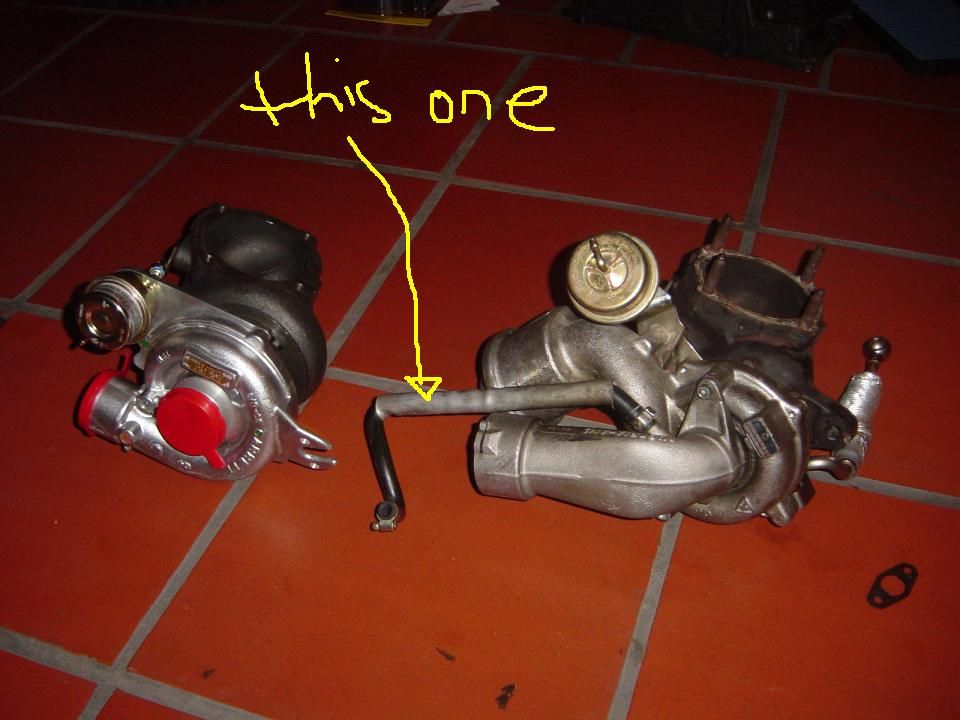

this is not my turbo but the pipe from the outlet tip were should that pipe run?

[Wazzzer]

I'll have a look in a bit but I'm sure that goes to your N75 as well

[Wazzzer]

Ah hang on, doesn't that one go back to the carbon canister?

[rfn_hodgson]

Wazzer you are right there. I only know this I've I've just done the ultimate delete and that does go to the carbon canister I'm sure of it!!

[Wazzzer]

Yeah mines blocked off too

[darren1.8t]

 has anyone got any pics  to were the pipes should go?

[darren1.8t]

  anyone

[Wazzzer]

No cos mine has gone... It runs under the scuttle back to the catch can though.

I can tell you where the pipes should go on the N75 if you want?

[dom]

It runs differently on an AUM so I'd guess it's the same on an AUQ as well. The pipe does not run along the scuttle to the carbon canister, instead it joins a hardline that runs along the right hand side on the block (near the combi valve for the SAI). This joins a second hardline that runs along the front of the engine underneath the FPR.

A hose comes off the second hardline and T's where the finger is pointing in the picture below. One end goes to the TB and the other to the carbon canister.

[Wazzzer]

Ah yes sorry it's all linked up with those hoses near the inlet...
