Digi ETKA fuel pump image

[Mk2Kezza]

Hi all,

My 8v digi has a leak from the main fuel pump located by the rear drivers wheel. Been meaning to do it for a while but need a ETKA diagram. The little 90 degree metal pipe that is part of the connection between the inline fuel filter and the pump is corroded badly and i dont think it will survive the change.

Thanks in advance.

Keri

[Gareth]

fuel line / DIGIFANT;



casing for fuel pump / fuel filter / fuel line / DIGIJET; MONO- JETRONIC DIGIFANT:




casing for fuel pump / fuel filter
/ PB,PF,RV; DIGIJET:NZ; MONO- JETRONIC:RP
1    191201293A

fuel pipe
feed /
2    191201294D

fuel pipe
return /
3    N 10083401

clamp
14,8X6X1 /
4    171201543B

hose
7/11MM /
-    N 0202811


hose in coils of 5m 'order unit 5'
7X3 /
5

shorten to:
150MM /
6

shorten to:
70MM /
7

shorten to:
160MM /
8    191201374D

fuel pipe
feed /
9    191201355D

fuel pipe
return /
-    N 0202811


hose in coils of 5m 'order unit 5'
7X3 /
10

shorten to:
80MM /
11    1H0201511A

fuel filter
/
12    191201311

angled hose
/
13    N 0241222

pipe clip
9X11-15 /
-    N 0202811


hose in coils of 5m 'order unit 5'
7X3 /
14

shorten to:
185MM /
15    165201042A

casing for fuel pump
/
16    191906090

fuel pump
/
(16)    191906091L

fuel pump
/ RP
17    191201792A

clamping ring
/
18    N 90312402

round seal
42X5,3N /
19    191201531B

strainer
/
20    N 10404701

oval head panel screw
5X30 /
21    191201505A

carrier panel
/
22    191201256

bonded rubber mounting
/
23    N 01166615

washer
6,4X18X1,6 /
24    N 01100624

hexagonal nut
M6 /
25    N 0122265

spring washer
B6X12X0,5 /
26    191201274

stop buffer
/
27    191201278A

spacer bush
/
28    191201280A

speed nut
/
(29)    N 90666101

cable tie
4,5X200 /
30    191201449

clips
/
31    191201449A

clips
/
32    N 01021710


hope this is the one you want mate, you should join http://www.vagcat.com they have an on-line catalog where you can view all of this for free

[Mk2Kezza]

Cheers Gareth,

Thats exactly what I was looking for...
I'll sign up nowto VAGcat now!

Cheers

Keri

[Mk2Kezza]

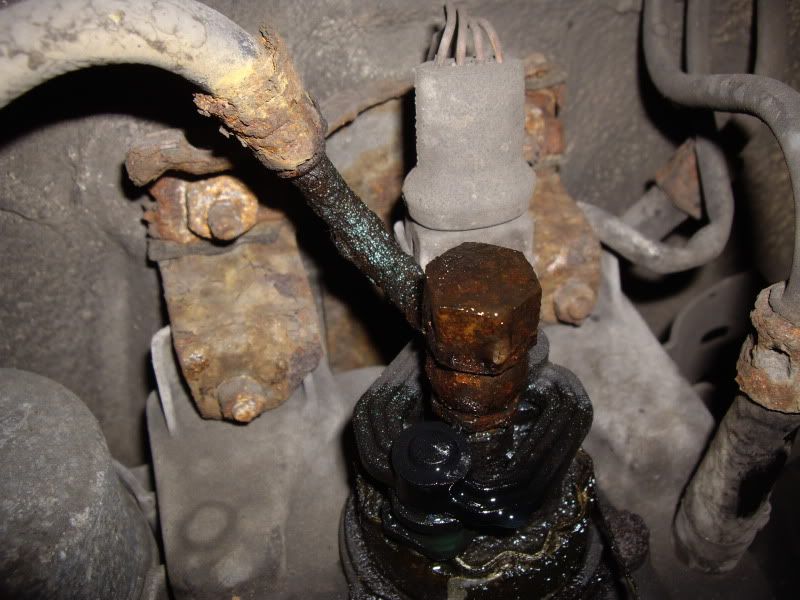

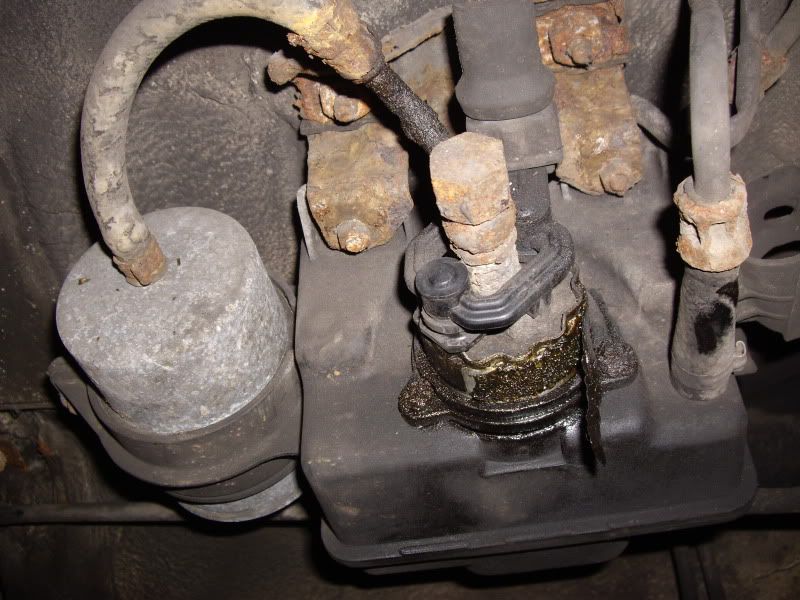

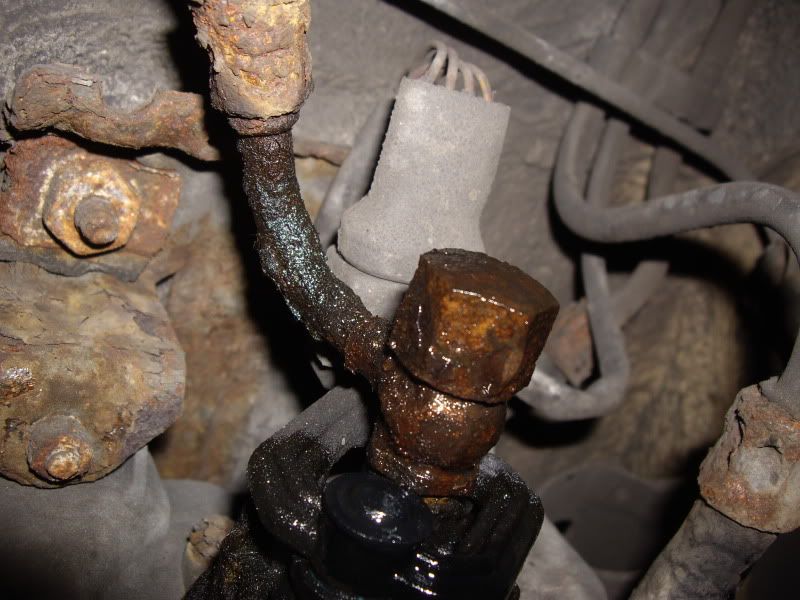

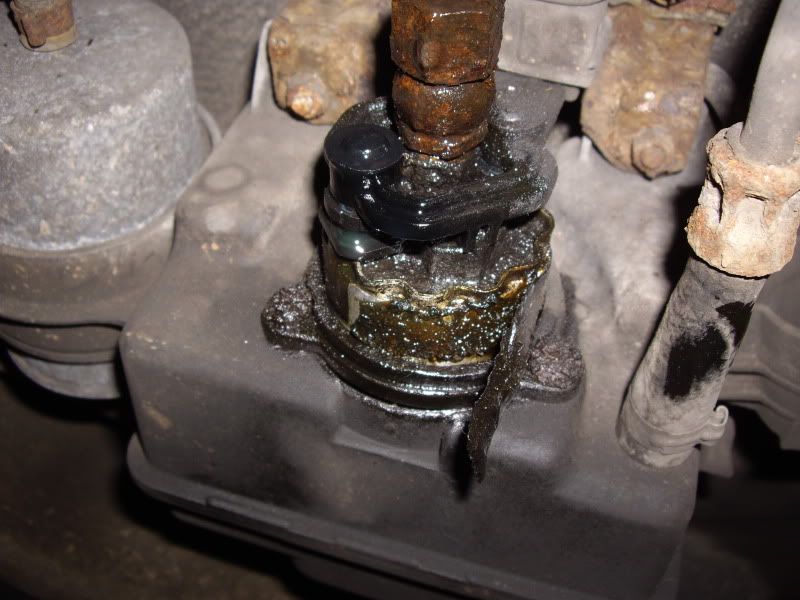

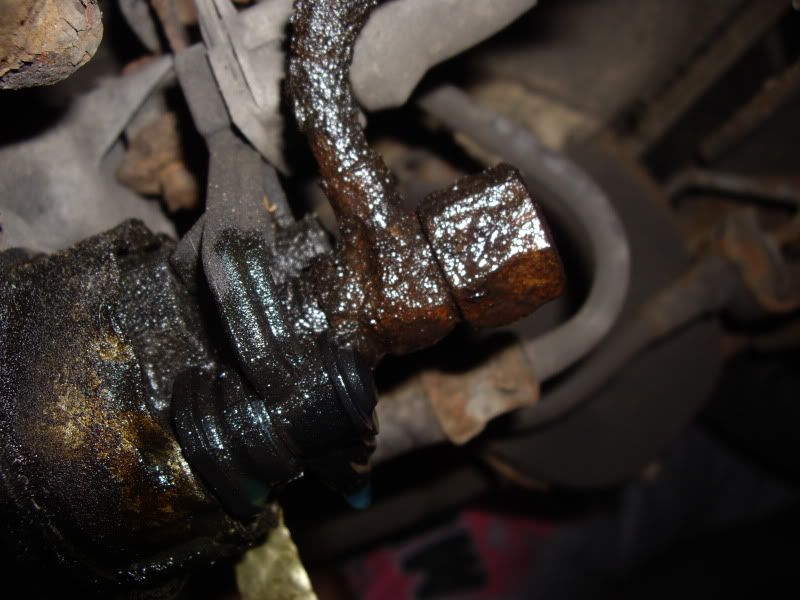

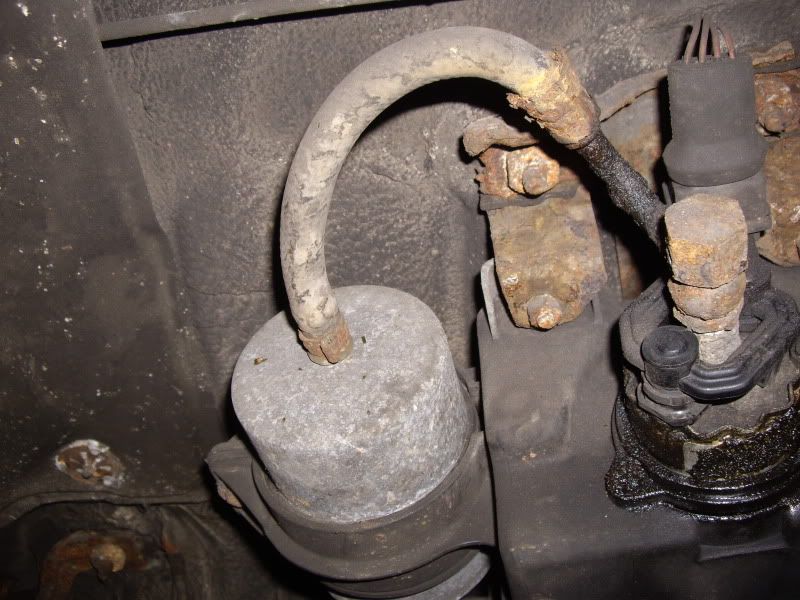

I've looked at the ETKA diagram but it doesn't match (as far as I can tell) what I have on the car. The following photos show what I have and the pipe that is leaking:



















Anyone got any ideas?

[Mk2Kezza]

Does anyone know if that 90 degree leaking pipe separate or is it part of the fuel pump?

[rob.043]

Just bought a bosch pump and it was not in the box or attached- so it must be seperate

[Gareth]

accumulator / K-JETRONIC:



fuel filter / fuel pump / fuel pipe
/ KR,PL
(1)    191201042A

casing for fuel pump
/ PL
1    191201043

casing for fuel pump
/ KR
(2)    191906091H

fuel pump
60MM / KR
(2)    191906091J

fuel pump
52MM / PL
2A    191906093A

non-return valve
/ PL
(2A)    893906093

non-return valve
/ KR
3

see illustration:
216-10 /
4    N 0110691

domed cap nut
M12X1,5 /
5    N 0138128

seal
A12X15,5X1,5 /
6    191201218

fuel pipe
feed /
7    049133696B

seal
/
8    N 90358003

banto bolt
10-2/M14X1,5 /
10    191201256

bonded rubber mounting
/
11    N 01166615

washer
6,4X18X1,6 /
12    N 01100624

hexagonal nut
M6 /
13    N 0122265

spring washer
B6X12X0,5 /
14    N 10404701

oval head panel screw
5X30 /
15    431133441C

accumulator
/ KR
(15)    853133441

accumulator
/ PL
16    N 01021710

hexagonal head bolt
M6X20 /
(17)    893133511



fuel filter / use if required:
810 133 525 A N 013 814 2 /
-    810133525A

reducing piece
M14X1,5/14X1,5 /
-    N 0138142

seal
A14X18 /
18    191201274

stop buffer
/
19    191201278A

spacer bush
/
20    191201280A

speed nut
/
21    191201293A

fuel pipe
feed /
22    191201294D

fuel pipe
return /
23    191201355

fuel pipe
return /
24    191201373

fuel pipe
feed /
25    191201374

fuel pipe
feed /
26    N 0138128

seal
A12X15,5X1,5 /
27    048133505

banto bolt with filter
M12X1,5 /
-    N 0202811


hose in coils of 5m 'order unit 5'
7X3 /
28

shorten to:
80MM /
31    N 10083401

clamp
14,8X6X1 /
32    191201505A

carrier panel
/
33    191201531

strainer
/ KR
(33)    191201531A

strainer
/ PL
34    N 90262802

round seal
51X5,3N / KR,PL
35    191201792

clamping ring
/ KR
(35)    191201792B

clamping ring
/ PL
37    191201449

clips
/
38    191201449A

clips
/
44    N 90908301


looks like a k-jet pump...

looks like you need:

24 -   191201373 - fuel pipe - feed

you might want to get 2 of  N 0138128 as well there the washers that seal at each end

and if its the banto bolt thats the problem -  048133505

hope that helps

[SimonG]

That drawing is a k-jet pump, the accumulator is present.  Not need on a digi pump.

[Mk2Kezza]

Update.

The accumalator that is present on my Digi golf is leaking.  It has a hairline fracture.

Do I need to replace the whole unit or can I get the corresponding digi part. I'm really confused as by all accounts the accumalator should not be on the car in the first place.

Anyone?

[Gareth]

you should just be able to change that pipe
