Author Topic: ABF vacuum hose into the bulkhead  (Read 6635 times)

Offline aminorthreat1

  • GTI forum regular
  • ***
  • Posts: 173
ABF vacuum hose into the bulkhead
« on: 07 April 2010, 20:35 »
right so today i've been inspecting the vacuum hoses which run from the back of the inlet manifold into the bulkhead, there all pretty decayed. one which was particularly bad was the one that runs into the bulkhead between the heater pipes. i gave it a little tug and felt a snap. so i removed the foam insulation between the pipes and the white connector the pipe attatches to has snapped off. im guessing this dissapears somewhere into the heater matrix. whats the easiest way to go about getting to it??
cheers
Logged

Offline aminorthreat1

  • GTI forum regular
  • ***
  • Posts: 173
Re: ABF vacuum hose into the bulkhead
« Reply #1 on: 07 April 2010, 20:40 »
plus, how do i get at the one that runs into the ECU for the MAP sensor?
Logged

Offline Paul86S2

  • I live here
  • *****
  • Posts: 1,376
Re: ABF vacuum hose into the bulkhead
« Reply #2 on: 07 April 2010, 20:51 »
What year is your car?

The one to the ecu is accessed by removing the plastic trim at the bottom of the windscreen (passenger side)

The one you have snapped off is for the auto heater controls.

Paul
Logged

Offline aminorthreat1

  • GTI forum regular
  • ***
  • Posts: 173
Re: ABF vacuum hose into the bulkhead
« Reply #3 on: 07 April 2010, 20:59 »
right cheers. its a 97. how do i go about gettin to the one i've managed to knacker/how important is it?
Logged

Offline *tell*

  • I live here
  • *****
  • Posts: 587
Re: ABF vacuum hose into the bulkhead
« Reply #4 on: 07 April 2010, 21:08 »
its easy to replace the vacuum pipe.
done mine a week ago  :wink:.
Logged

Offline aminorthreat1

  • GTI forum regular
  • ***
  • Posts: 173
Re: ABF vacuum hose into the bulkhead
« Reply #5 on: 07 April 2010, 21:51 »
well yeah its just gettin at the bit the vacuum hose attatches too inside the bulkhead thats snapped off thats the problem.
Logged

Offline *tell*

  • I live here
  • *****
  • Posts: 587
Re: ABF vacuum hose into the bulkhead
« Reply #6 on: 07 April 2010, 23:08 »

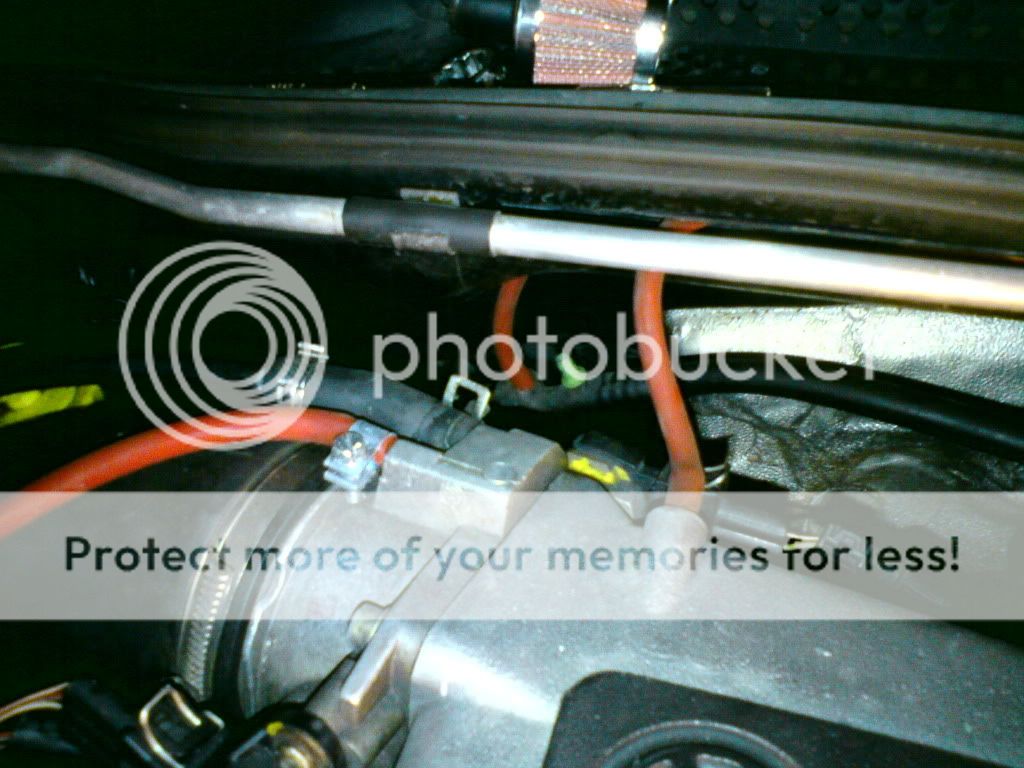

i got a split pin opened it up and joined to two pieces together and
pulled it though to bulkhead.
Logged

Offline rubjonny

  • 10k hero
  • *
  • Posts: 16,349
  • Hello, my name is John and I'm a dub addict.
Re: ABF vacuum hose into the bulkhead
« Reply #7 on: 08 April 2010, 10:19 »
that soundfs like the connection for the a/c system? if it was me, I'd have the dash undertray off and see if you can spot the other end of the vacuum tube. then re-route it thru one of the spare holes in the bulkhead :)
Logged
Hello my name is John and I'm a dub addict.

Offline aminorthreat1

  • GTI forum regular
  • ***
  • Posts: 173
Re: ABF vacuum hose into the bulkhead
« Reply #8 on: 08 April 2010, 15:25 »
spot on, cheers! i'll give that a go. right, another question... out of the two hoses at the back which should go to the MAP sensor on the ECU



coz i'm sure i read somewhere that it should be the one on the back of the manifold closest to the throttle body. however this one goes off to a small blue valve and the other hose, at the back which connects to the larger black pipe, runs to the ECU.
Logged

Offline Paul86S2

  • I live here
  • *****
  • Posts: 1,376
Re: ABF vacuum hose into the bulkhead
« Reply #9 on: 08 April 2010, 15:53 »
The one at the back of the manifold above the VW sign goes to the ecu.

The other one is usually for the aircon

Paul
Logged
