help :)

[pinkcrush]

ok i need some help chaps

as ive marked on the pictures, but i need a picture or information

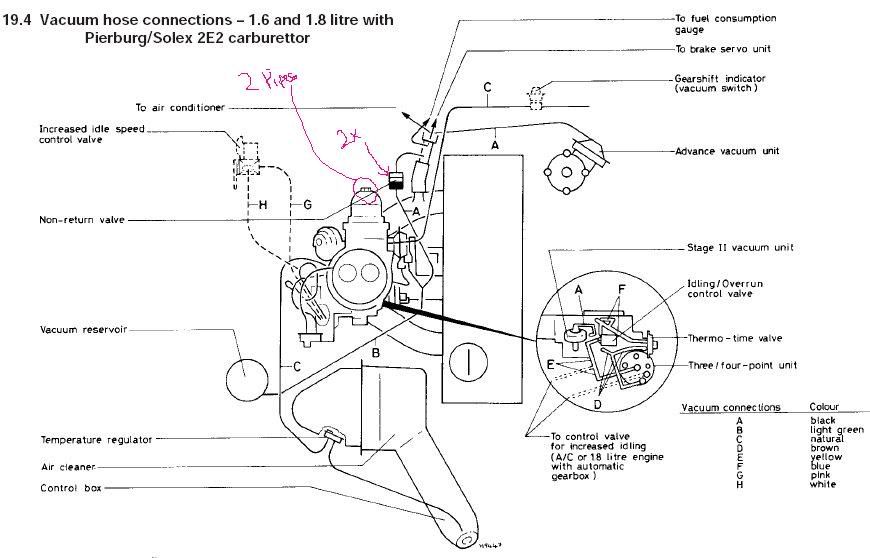

the top picture i have 2 non return valves, so what pipe goes to what one ?
on the choke i have two pipes, inlet and out let, what connects to them ?

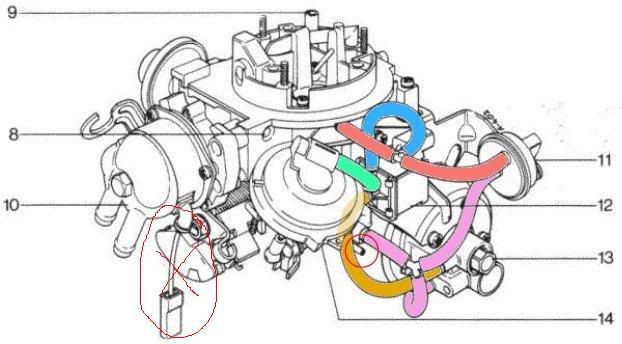

2nd picture i dont have that connector, i have more pipes any idear what goes to it ?

i do hope you all bear in mind iam not working on this car , but my bro is and after doing the o'ring his now got all these pipes he dosent know where they go , so if any one has pictures or there engine is the same can you please shed some light to these

many thanks

ann

ps the o'ring was totaly blocked so you guys where right

[Veedubgt18v]

im pretty certain that connector is the warm up for the auto choke to stop it freezing shut. i would connect up your car like the pics n see wat happens

[rubjonny]

The big pipes are coolant pipes from the inlet manifold & waxstat.  That connector is for the electric heater in the autochoke, if its missing, you need to get another one!  Your car is defo a 1.6/1.8 Carb right?  Actually, is it an automatic?

As for the non-return valves, this any help?

[pinkcrush]

yup is 1,6 automatic

i dunno if the picture will help. il pas it on

as for the auto choke its not missing it pipes i think instead af a connector, i cant rember dont help ;(, but my brother couldnt find anything like it in the haynes manual

il ring him and get more information later

[rubjonny]

Ah well you might have the bit labled '1' on the back of the autochoke as well:
